Descriptio

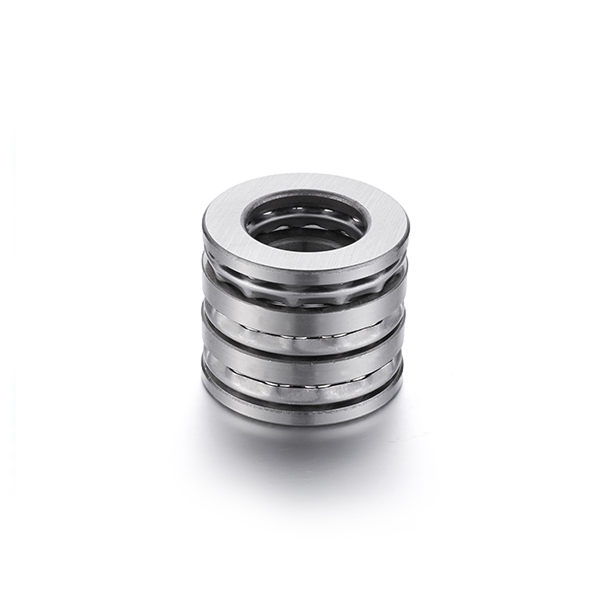

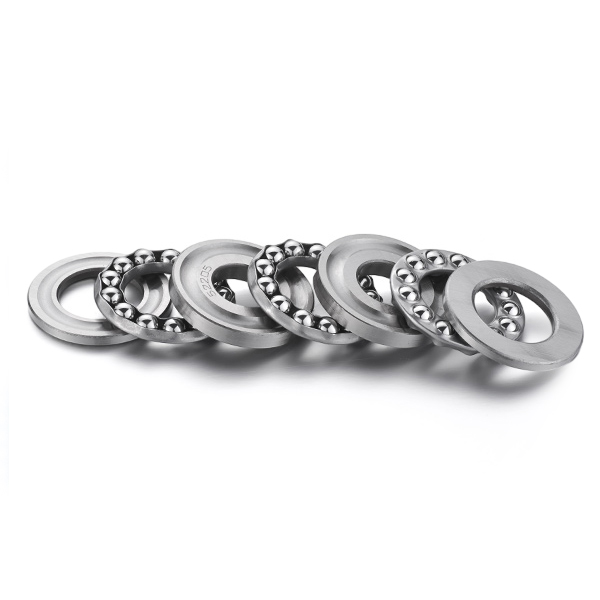

Duplex directionis globulus gestus impulsus species sunt gerendi destinati ad axialis onera utrinque accommodata. Constant ex duobus lavatoribus sulcatus cum globo raceways et duo plani raceviorum in porta habitationi. Hae gestus separabiles sunt, permittens faciles ascendentes et descendentes

contact us Inquisitionis
PREV：Unam partem pilam gestus
DEINDE：Unam partem pilam gestus cum globo sphaericae habitationi trudunt

Product Detail

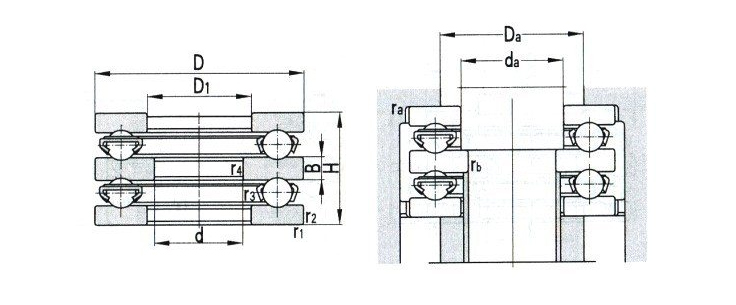

Dimensiones termini
(mm) 		Onus rating
(KN) 		Ferens numerum Limitand***i celeritas
(r/min) 		Abutment et vitta dimensionibus
(mm) 		Mass
(proxime.)
(flat)
kg
d d1

min

D H B r1,2

min

r3.4

min

Cr Cor Grease Oleum da

min

Da

max

ra

max

rb * * *

max

10 17 32 22 5 0.6 0.3 13.4 14.5 52202 5300 7000 15 22 0.6 0.3 0.0818
15 22 40 26 6 0.6 0.3 21.1 23.9 52204 4500 6000 20 28 0.6 0.3 0.1410
15 27 60 45 11 1.0 0.6 55.4 59.8 52405 2600 3600 25 42 1.0 0.6 0.6410
20 27 47 28 7 0.6 0.3 27.7 36.3 52205 4000 5300 25 34 0.6 0.3 0.2070
20 27 52 34 8 1.0 0.3 35.7 42.1 52305 3400 4500 25 36 1.0 0.3 0.3300
20 32 70 52 12 1.0 0.6 72.2 81.0 52406 2000 3000 30 46 1.0 0.6 1.0000
25 32 52 29 7 0.6 0.3 29.3 43.8 52206 3600 4800 30 39 0.6 0.3 0.2490
25 32 60 38 9 1.0 0.3 47.1 57.2 52306 2800 3800 30 42 1.0 0.3 0.4700
25 37 80 59 14 1.1 0.6 86.4 102.0 52407 1800 2600 35 53 1.0 0.6 1.4500
30 37 62 34 8 1.0 0.3 39.1 58.6 52207 3000 4000 35 46 1.0 0.3 0.4030
30 42 68 36 9 1.0 0.6 47.0 74.1 52208 2800 3800 40 51 1.0 0.6 0.5290
30 37 68 44 10 1.0 0.3 55.4 73.9 52307 2400 3400 35 48 1.0 0.3 0.6800
30 42 78 49 12 1.0 0.6 68.9 95.8 52308 2000 3000 40 55 1.0 0.6 1.0500
30 42 90 65 15 1.1 0.6 112.0 133.0 52408 1700 2400 40 60 1.0 0.6 2.0500
35 47 73 37 9 1.0 0.6 47.5 81.5 52209 2600 3600 45 56 1.0 0.6 0.5970
35 47 85 52 12 1.0 0.6 79.5 118.0 52309 1900 2800 45 61 1.0 0.6 1.2500
35 47 100 72 17 1.1 0.6 130.0 240.0 52409 1600 2200 45 67 1.0 0.6 2.7000
40 52 78 39 9 1.0 0.6 54.4 94.4 52210 2400 3400 50 61 1.0 0.6 0.6850
40 52 95 58 14 1.1 0.6 96.2 146.0 52310 1800 2600 50 68 1.0 0.6 1.7500
40 52 110 78 18 1.5 0.6 159.0 310.0 52410 1400 2000 50 80 1.5 0.6 3.5100
45 57 90 45 10 1.0 0.6 69.4 123.0 52211 1900 2800 55 69 1.0 0.6 1.0900
45 57 105 64 15 1.1 0.6 126.0 189.0 52311 1600 2200 55 75 1.0 0.6 2.4000
45 57 120 87 20 1.5 0.6 178.0 360.0 52411 1300 1800 55 81 1.5 0.6 4.7000
50 62 95 46 10 1.0 0.6 70.6 133.0 52212 1900 2800 60 74 1.0 0.6 1.2000
Dimensiones termini
(mm) 		Onus rating
(KN) 		Ferens numerum Limitand***i celeritas
(r/min) 		Abutment et vitta dimensionibus
(mm) 		Mass
(proxime.)
(flat)
kg
d d1

min

D H B r1,2

min

r3.4

min

Cr Cor Grease Oleum da

min

Da

max

ra

max

rb * * *

max

50 62 110 64 15 1.1 0.6 129.0 209.0 52312 1600 2200 60 80 1.0 0.6 2.5500
50 62 130 93 21 1.5 0.6 199.0 400.0 52412 1100 1600 60 88 1.5 0.6 6.3500
50 68 140 101 23 2.0 1.0 216.0 450.0 52413 1000 1500 65 100 2.0 1.0 7.4100
55 67 100 47 10 1.0 0.6 72.0 144.0 52213 1800 2600 65 79 1.0 0.6 1.2900
55 72 105 47 10 1.0 1.0 76.0 162.0 52214 1800 2600 70 88 1.0 1.0 1.4400
55 67 115 65 15 1.1 0.6 139.0 229.0 52313 1500 2000 65 85 1.0 0.6 2.7500
55 72 125 72 16 1.1 1.0 161.0 268.0 52314 1400 1900 70 92 1.0 1.0 3.6500
55 73 150 107 24 2.0 1.0 234.0 500.0 52414 950 1400 70 110 2.0 1.0 8.9900
60 77 110 47 10 1.0 1.0 77.1 172.0 52215 1700 2400 75 89 1.0 1.0 1.5500
60 77 135 79 18 1.5 1.0 184.0 311.0 52315 1200 1700 75 99 1.5 1.0 4.8000
60 78 160 115 26 2.0 1.0 251.0 560.0 52415 900 1300 75 115 2.0 1.0 10.8000
65 82 115 48 10 1.0 1.0 86.4 193.0 52216 1700 2400 80 94 1.0 1.0 1.6400
65 82 140 79 18 1.5 1.0 189.0 339.0 52316 1200 1700 .80 104 1.5 1.0 4.9400
65 83 170 120 27 2.1 1.0 270.0 620.0 52416 850 1200 80 125 2.0 1.0 12.6000
65 88 180 128 29 2.1 1.1 286.0 680.0 52417 850 1200 85 130 2.0 1.0 15.4000
70 88 125 55 12 1.0 1.0 97.9 229.0 52217 1600 2200 85 101 1.0 1.0 2.4000
70 88 150 87 19 1.5 1.0 215.0 389.0 52317 1100 1600 85 115 1.5 1.0 6.3800
70 93 190 135 30 2.1 1.1 307.0 750.0 52418 800 1100 90 140 2.0 1.0 17.5000
75 93 135 62 14 1.1 1.0 125.0 277.0 52218 1500 2000 90 108 1.0 1.0 3.2000
75 93 155 88 19 1.5 1.0 232.0 410.0 52318 1000 1500 90 120 1.5 1.0 6.7900
80 103 210 150 33 3.0 1.1 345.0 775.0 52420M - - - - - - 25.3000
80 103 210 150 33 3.0 1.1 371.0 965.0 52420 700 950 100 155 2.5 1.0 26.8000
85 103 150 67 15 1.1 1.0 155.0 341.0 52220 1300 1800 100 125 1.0 1.0 4.2000

Dimensiones termini
(mm) 		Onus rating
(KN) 		Ferens numerum Limitand***i celeritas
(r/min) 		Abutment et vitta dimensionibus
(mm) 		Mass
(proxime.)
(flat)
kg
d d1
min 		D H B r1,2
min 		r3.4
min 		Cr Cor Grease Oleum da
min 		Da
max 		ra
max 		rb * * *
max
85 103 170 97 21 1.5 1.0 229.0 560.0 52320 950 1400 100 135 1.5 1.0 8.9500
90 113 230 166 37 3.0 1.1 377.0 900.0 53422 - - - - - - 33.4000
95 113 160 67 15 1.1 1.0 131.0 393.0 52222 2800 3700 110 130 1.0 1.0 4.5100
95 113 190 110 24 2.0 1.0 234.0 588.0 52322M - - - - - - 13.2000
95 113 190 110 24 2.0 1.0 234.0 588.0 52322 - - - - - - 12.9000
100 123 210 123 27 2.1 1.1 268.0 711.0 52324 - - - - - - 17.3000
120 143 200 81 18 1.5 1.1 174.0 543.0 5228M 700 950 140 164 1.5 1.0 8.6700
120 154 300 209 46 4.0 2.0 518.0 1479.0 53430 - - - - - - 70.3000
130 153 215 89 20 1.5 1.1 202.0 651.0 52230 - - - - - - 10.3000
130 154 250 140 31 2.1 2.1 330.0 1021.0 5230M 560 670 150 191 2.0 1.0 31.2000
130 154 250 140 31 2.1 2.1 330.0 1021.0 52330 560 670 150 191 2.0 1.0 29.4000
140 163 225 90 20 1.5 1.1 205.0 692.0 52232M 600 850 - - - - 11.8000
140 163 225 90 20 1.5 1.1 205.0 692.0 52232 590 820 160 186 1.5 1.0 11.7000
150 183 250 98 21 1.5 2.0 227.0 825.0 52236M 520 800 - - - - 15.6000
150 183 250 98 21 1.5 2.0 227.0 825.0 52236 520 800 180 208 1.5 2.0 14.3000
150 184 300 165 37 3.0 2.0 396.0 1436.0 52336M - - 180 208 1.5 2.0 48.8000
160 194 270 109 24 2.0 2.0 275.0 1019.0 52238 - - - - - - 21.4000
160 194 270 109 24 2.0 2.0 275.0 1019.0 38238K - - - - - - 20.9000
170 204 280 109 24 2.0 2.0 271.0 1029.0 52240 - - - - - - 22.1000
300 340 400 80 18 1.8 1.3 129.0 810.0 38768 - - - - - - 21.1000
570 615 700 90 20 3.0 1.3 139.0 1073.0 387/615 - - - - - - 53.7000

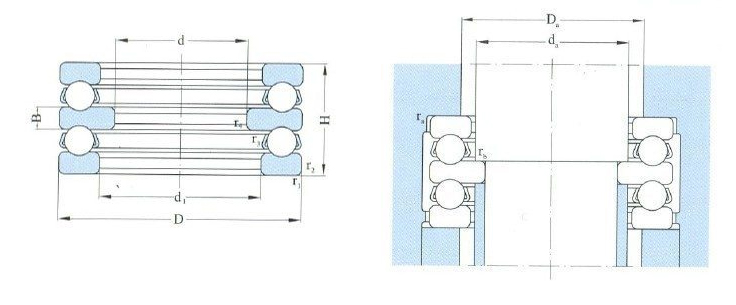

Basic dimensiones
(mm) 		Basic onus rating
(KN) 		Limitand***i celeritas
(r/min) 		Ferens numerum Dimensiones Abutment et vitta dimensionibus
(mm) 		Mass
kg
d (mm) D(mm) H(mm) rmin r1min Cr Cor Grease Oleum d1 D1 da(min) Da(max) ra (max) rb * * *(max)
570 700 90 3 1.3 291 2147 - - - 615 20 - - - - 53.7
1049.5 1270 220 3 5 1222 9950 - - 5627/1050 1180 - - - - - 392

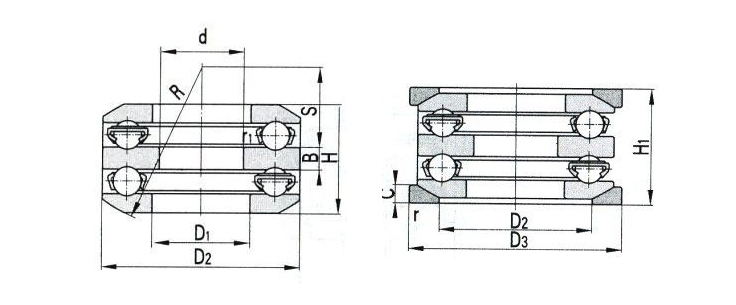

Basic dimensiones Basic onus rating
(KN) 		Ferens numerum Dimensiones Abutment et vitta dimensionibus
(mm) 		Pondus
kg
d (mm) D(mm) H(mm) rmin r1min Cr Cor D1 D2 D3 B C H1 R S da(min) Da(max) ra (max) rb * * *(max)
30 68 47.2 1 0.3 55.9 74.0 54307 U307 37 52 72 10 7.5 52 56 21 35 52 1 0.3 0.909
40 64 35.4 0.6 0.6 24.7 50.0 54208 U208 42 48 69 7 7 42 50 20.9 40 55 1 0.6 0.563
85 170 105.4 1.5 1 276 513 54320 U320 103 135 175 21 18 115 125 42 - - - - 10.8
85 170 105.4 1.5 1 276 513 54320M U320 103 - - 21 - - 125 42 - - - - 8.93
100 210 131.2 2.1 2.1 378 630 54324M U324 123 165 220 27 22 143 160 58 - - - - 23.0
100 210 131.2 2.1 2.1 378 630 54324 U324 123 165 220 27 22 143 160 58 - - - - 22.2

Mitte Ball Bearings

Unam partem pilam gestus

Unam partem pilam gestus
Duplici directione pila gestus impellunt

Duplici directione pila gestus impellunt
Unam partem pilam gestus cum globo sphaericae habitationi trudunt

Unam partem pilam gestus cum globo sphaericae habitationi trudunt
De nobis
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd. is professional China Duplici directione pila gestus impellunt Suppliers and Wholesale Duplici directione pila gestus impellunt Manufacturers.Located on the coast of Eastern China, in the beautiful and ancient city of Ningbo, is a rising star enterprise, Ningbo Demy (D&M) Bearings Co., LTD. Its subsidiary company – Ningbo Giant Bearing manufacturing Co., Ltd specializes in high class quality bearings for industrial and automotive applications.
Media
Nuntius videre
Mitte Ball Bearings Industry knowledge

Duplex directionis globum gestus bidirectional emolumenta impellunt

Duplex Directio Mitte Ball Bearings bidirectionale significat suam facultatem concedere partes rotationis libere movere in duas partes contrarias. Hoc consilium permittit ferre ad stabilitatem obtinendam sub diversis condicionibus operandis et occurrentibus necessitatibus variarum systematum transmissionum multiplicium. Magnitudo bidirectionalitatis in eo posita est, quod maiorem flexibilitatem et aptabilitatem praebet, ut certior et efficacior afferat in diversis oneribus et condicionibus operandis.

Consilium bidirectionale globum duplicem directionis impulsum sustinentem sinit ferre et onera axialis in duas partes transmittere. Hoc significat, in motu partis rotationis, utcumque motus directionis eius mutatur, portatio stabilis sustentationem et effectus transmissionis praebere potest. Haec flexibilitas facit duplicem directionem pilae impulsum sustinentem habere amplis prospectibus applicationis in instrumento mechanico, quod saepe mutare debet directionem motus. Cum globulus duplicatus impulsus globum gerens sinit partem gyrationis libere movere in duas partes, melius potest variis condicionibus implicatis accommodare et onerare mutationes. Utrum in gravi onere, magna celeritate vel alta praecisione ratio tradendi, duplex directio pilae impulsus ferre potest stabilis effectus servare ac normalem operationem instrumentorum mechanicorum curare. Haec bona aptabilitas facit duplicem directionem pilam impellentem quae late in variis campis industrialibus adhibetur. Consilium bidirectionale duplex directionis impulsus globum gestus reducere potest additae frictioni et resistentiae ex mutationibus in directione causatis, inde minuendo energiam consummationem et efficientiam laboris melioris. In instrumento mechanico, haec utilitas in efficientiam productionem altiorem converti potest et gratuita operandi inferiora. Cum duplex directio pilae gestus intrudere potest, stabilis effectus conservare, etiam tempus down tempus et sumptus sustentationis detrimentum afferendo minuere possunt. Traditionalis unica directio pilae gestus intrusit necesse est cooperari cum aliis gestus vel mechanismos ad motum bidirectionalem perficiendum, cum duplex directio pilae gestus emittat non necesse est. Haec simplicitas in consilio fabricandis instrumentis mechanicis non solum minuitur, sed etiam multiplicitatem institutionis et sustentationis minuit. Ad designatores et fabrum, usus pilae duplicis directionis impulsus gestus, facilius percipere potest, systema transmissionis complexorum consiliorum.
In nonnullis applicationibus, ut impedimenta aerospace et velocitas alta, salus et commendatio requisita gestuum sunt altissima. Consilium bidirectionale globulorum globorum activitatis impulsus efficere potest, ut partes rotationis stabilitatem status motus in casu aliquo tenere possint, vitandis accidentibus ex directione mutationibus causatis. Hoc consilium quod meliorem salutem facit duplex directionis impulsus pila gestus late in his agris.
