Demy

Duplex signatus alta fossa pila portans
Duplex signatus alta fossa pila portans

Self-aligning Ball Bearings

Duplex signatus alta fossa pila portans

Descriptio

Partes duplices signatae communiter adhibentur in applicationibus ubi condiciones environmental durae sint aut ubi opus est ne lacus aut contagione ducatus. In variis industriis inveniuntur, inter quas autocinetiones, machinae industriales, agriculturae et plures. Ordinatio signandi adiuvat ad vitam portationis prorogandam conservandam propriam lubricationem et impediendam contagionum noxiarum ingressus, minuendo attritu et induendo. Hoc genus afferendi saepe praefertur in applicationibus ubi conservationem circumscriptam vel difficilem regulariter exercendi.^

contact us Inquisitionis
PREV：XLV * LXXXV * 19mm sui aligning pila adferentem
DEINDE：Nullus proximus articulum

Product Detail

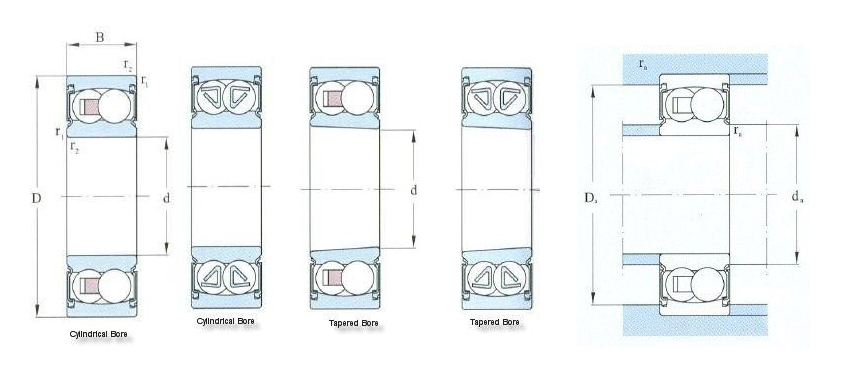

Dimensiones termini (mm) Load** rating(kN) Celeritas rating (r/min) Ferens numeros Adscendens dimensiones (mm) Axial onus factors Pondus
(reference)
(kg)
d D B r1,2
min 		Cr Cor Grease Cylindrus bore Attenuatis bore da
min 		Da
max 		ra
max 		e Y1 Y2 Y0
10 30 14 0.6 5.53 1.18 17000 2200A-2RS1TN - 14.0 26.0 0.6 0.33 1.9 3.0 2.0 0.048
12 32 14 0.6 6.24 1.43 16000 2201A-2RS1TN - 15.0 28.0 0.6 0.33 1.9 3.0 2.0 0.053
15 35 14 0.6 7.41 1.76 14000 2202A-2RS1TN - 19.0 31.0 0.6 0.33 1.9 3.0 2.0 0.058
15 42 17 1.0 10.80 2.60 12000 2302A-2RS1TN - 20.0 37.0 1.0 0.31 2.0 3.1 2.2 0.110
17 40 16 0.6 8.84 2.20 12000 2203A-2RS1TN - 21.0 36.0 0.6 0.31 2.0 3.1 2.2 0.089
17 47 19 1.0 12.70 3.40 11000 2303A-2RS1TN - 22.0 42.0 1.0 0.30 2.1 3.3 2.2 0.160
20 47 18 1.0 12.70 3.40 10000 2204A-2RS1TN 2204AK-2RS1TN 25.0 42.0 1.0 0.30 2.1 3.3 2.2 0.140
20 52 21 1.1 14.30 4.00 9500 2304A-2RS1TN - 26.0 45.5 1.0 0.28 2.2 3.5 2.5 0.210
25 52 18 1.0 14.30 4.00 9000 2205A-2RS1TN 2205AK-2RS1TN 30.0 47.0 1.0 0.28 2.2 3.5 2.5 0.160
25 62 24 1.1 19.00 5.40 7500 2305A-2RS1TN - 31.5 55.5 1.1 0.28 2.2 3.5 2.5 0.340
30 62 20 1.0 15.60 4.65 7500 2206A-2RS1 2206AK-2RS1 35.0 57.0 1.0 0.25 2.5 3.9 2.5 0.260
30 62 20 1.0 15.60 4.65 7500 2206A-2RS1TN 2206AK-2RS1TN 35.0 57.0 1.0 0.25 2.5 3.9 2.5 0.260
30 72 27 1.1 22.50 6.80 6700 2306A-2RS1 - 36.5 65.5 1.0 0.25 2.5 3.9 2.5 0.510
30 72 27 1.1 22.50 6.80 6700 2306A-2RS1TN - 36.5 65.5 1.0 0.25 2.5 3.9 2.5 0.510
35 72 23 1.1 19.00 6.00 6300 2207A-2RS1 2207AK-2RS1 41.5 65.5 1.0 0.23 2.7 4.2 2.8 0.410
35 72 23 1.1 19.00 6.00 6300 2207A-2RS1TN 2207AK-2RS1TN 41.5 65.5 1.0 0.23 2.7 4.2 2.8 0.410
35 80 31 1.5 26.50 8.50 5600 2307A-2RS1 - 43.0 72.0 1.5 0.25 2.5 3.9 2.5 0.700
35 80 31 1.5 26.50 8.50 5600 2307A-2RS1TN - 43.0 72.0 1.5 0.25 2.5 3.9 2.5 0.700
40 80 23 1.1 19.90 6.95 5600 2208A-2RS1 2208AK-2RS1 46.5 73.5 1.0 0.22 2.9 4.5 2.8 0.500
40 80 23 1.1 19.90 6.95 5600 2208A-2RS1TN 2208AK-2RS1TN 46.5 73.5 1.0 0.22 2.9 4.5 2.8 0.500
40 90 33 1.5 33.80 11.20 5000 2308A-2RS1 - 48.0 82.0 1.5 0.23 2.7 4.2 2.8 0.960
40 90 33 1.5 33.80 11.20 5000 2308A-2RS1TN - 48.0 82.0 1.5 0.23 2.7 4.2 2.8 0.960
45 85 23 1.1 22.90 7.80 5300 2209A-2RS1 2209AK-2RS1 51.5 78.5 1.0 0.21 3.0 4.6 3.2 0.530
45 85 23 1.1 22.90 7.80 5300 2209A-2RS1TN 2209AK-2RS1TN 51.5 78.5 1.0 0.21 3.0 4.6 3.2 0.530
Dimensiones termini (mm) Load** rating(kN) Celeritas rating (r/min) Ferens numeros Adscendens dimensiones (mm) Axial onus factors Pondus
(reference)
(kg)
d D B r1,2
min 		Cr Cor Grease Cylindrus bore Attenuatis bore da
min 		Da
max 		ra
max 		e Y1 Y2 Y0
45 100 36 1.5 39.00 13.40 4500 2309A-2RS1 - 53.0 92.0 1.5 0.23 2.7 4.2 2.8 1.300
45 100 36 1.5 39.00 13.40 4500 2309A-2RS1TN - 53.0 92.0 1.5 0.23 2.7 4.2 2.8 1.300
50 90 23 1.1 22.90 8.15 4800 2210A-2RS1 2210AK-2RS1 56.5 83.5 1.0 0.20 3.2 4.9 3.2 0.570
50 90 23 1.1 22.90 8.15 4800 2210A-2RS1TN 2210AK-2RS1TN 56.5 83.5 1.0 0.20 3.2 4.9 3.2 0.570
50 110 40 2.0 43.60 14.00 4000 2310A-2RS1 - 59.0 101.0 2.0 0.24 2.6 4.1 2.8 1.650
50 110 40 2.0 43.60 14.00 4000 2310A-2RS1TN - 59.0 101.0 2.0 0.24 2.6 4.1 2.8 1.650
55 100 25 1.5 27.60 10.60 4300 2211A-2RS1 2211AK-2RS1 63.0 92.0 1.5 0.19 3.3 5.1 3.6 0.790
55 100 25 1.5 27.60 10.60 4300 2211A-2RS1TN 2211AK-2RS1TN 63.0 92.0 1.5 0.19 3.3 5.1 3.6 0.790
60 110 28 1.5 31.20 12.20 3800 2212A-2RS1 - 68.0 102.0 1.5 0.19 3.3 5.1 3.6 1.050
60 110 28 1.5 31.20 12.20 3800 2212A-2RS1TN - 68.0 102.0 1.5 0.19 3.3 5.1 3.6 1.050
65 120 31 1.5 35.10 14.00 3600 2213A-2RS1 - 73.0 112.0 1.5 0.18 3.5 5.4 3.6 1.400
65 120 31 1.5 35.10 14.00 3600 2213A-2RS1TN - 73.0 112.0 1.5 0.18 3.5 5.4 3.6 1.400
70 125 31 1.5 34.50 13.70 3400 2214A-2RS1 - 78.0 117.0 1.5 0.18 3.5 5.4 3.6 1.500
70 125 31 1.5 34.50 13.70 3400 2214A-2RS1TN - 78.0 117.0 1.5 0.18 3.5 5.4 3.6 1.500

Self-aligning Ball Bearings

XLV * LXXXV * 19mm sui aligning pila adferentem

XLV * LXXXV * 19mm sui aligning pila adferentem
Duplex signatus alta fossa pila portans

Duplex signatus alta fossa pila portans
De nobis
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd.
Ningbo Demy (D&M) Bearings Co., Ltd. is professional China Duplex signatus alta fossa pila portans Suppliers and Wholesale Duplex signatus alta fossa pila portans Manufacturers.Located on the coast of Eastern China, in the beautiful and ancient city of Ningbo, is a rising star enterprise, Ningbo Demy (D&M) Bearings Co., LTD. Its subsidiary company – Ningbo Giant Bearing manufacturing Co., Ltd specializes in high class quality bearings for industrial and automotive applications.
Media
Nuntius videre
Self-aligning Ball Bearings Industry knowledge

Duplex signatus alta sulcus pila portans compages

Duplex Signatum Deep Groove Ball Ferens is a high-performance, high-reliability bearing type. Unicum est duplex postesque signationis consilium, quod permittit ut efficaciter impedire intrusionem pollutantium externorum, cum onera radialia et axialia gestantia, ad munditiam et lubricationem gerendi internum ambitum procurandum.

1. compositionem structuralis
Double Sealed Deep Groove Ball Bearing is mainly composed of the following parts.
Outer ring: The outer ring is spherical and has no raceway. Its inner surface is precisely machined to form a good contact with the rolling element. The outer ring is usually made of high-quality steel to ensure its strength and wear resistance.
Inner ring: The inner ring consists of two raceways, between which the rolling element and the cage are accommodated. The inner ring is also made of high-quality steel and is heat-treated to improve its hardness and wear resistance.
Elementum volubile: Elementum volubile plerumque utitur globulis chalybeis exquisitis, cuius numerus, diameter et materia determinantur secundum capacitatem et usum condiciones portationis onera portantis. The rolling element rolls between the inner and outer rings and bears radial and axial loads.
Cage: The cage is used to fix the rolling elements to prevent them from colliding with each other and wearing. Cavea plerumque e lamina ferrea figurae vel fluctus figurae vel machinae solidae structurae factae, et materia ferrea, aes vel materia plastica esse potest.
Sealing ring: The sealing ring is a key component of Double Sealed Deep Groove Ball Bearing. Its unique design can effectively prevent external contaminants from entering the bearing. The sealing ring is usually made of elastic materials such as rubber or polytetrafluoroethylene, and has good sealing and wear resistance.

2. signantes design
The sealing design of Double Sealed Deep Groove Ball Bearing is its unique feature. Sealing rings are installed at both ends of the bearing to ensure that the inside of the bearing is completely isolated from the outside world. Anulus obsignatio arctam contactum cum circulis interioribus et exterioribus portationis facit, ne pulvis, umor et alii contaminantes portationem ingrediantur. Annulus obsignatio etiam quandam elasticitatem habet, quae potest levi deformatione portationis in operatione accommodare ac firmitatem effectus signandi curare.

3. Material lectio
The material selection of Double Sealed Deep Groove Ball Bearing is very critical. Interiores et exteriores circuli, elementa volventia et caveis gestationis plerumque fiunt chalybeae qualitatee ut vires suas obtineant et resistentiam adhibeant. The sealing ring is made of elastic materials such as rubber or polytetrafluoroethylene, which has good sealing and wear resistance. Praeterea portationes oportet impleri congrua quantitate uncto, ut effectum sortiendi in operatione lubricationis curet.

4. processus vestibulum
Processus fabricationis duplicis signati Alti Groove Ball Ferens delicatissimus est. Interiores et exteriores circuli, elementa volventia et caveis ferentium, praecise discursum esse et caloris tractari debent ut accurate ac perficiendi requisita dimensiva curent. Annulus obsignatio conficitur utens speciali processu ad effectum obtinendum obsignandi. Fusio etiam in processu comitiali stricte purgari et lubricari debet ut munditia et lubricatio eius internae ambitus curet.
